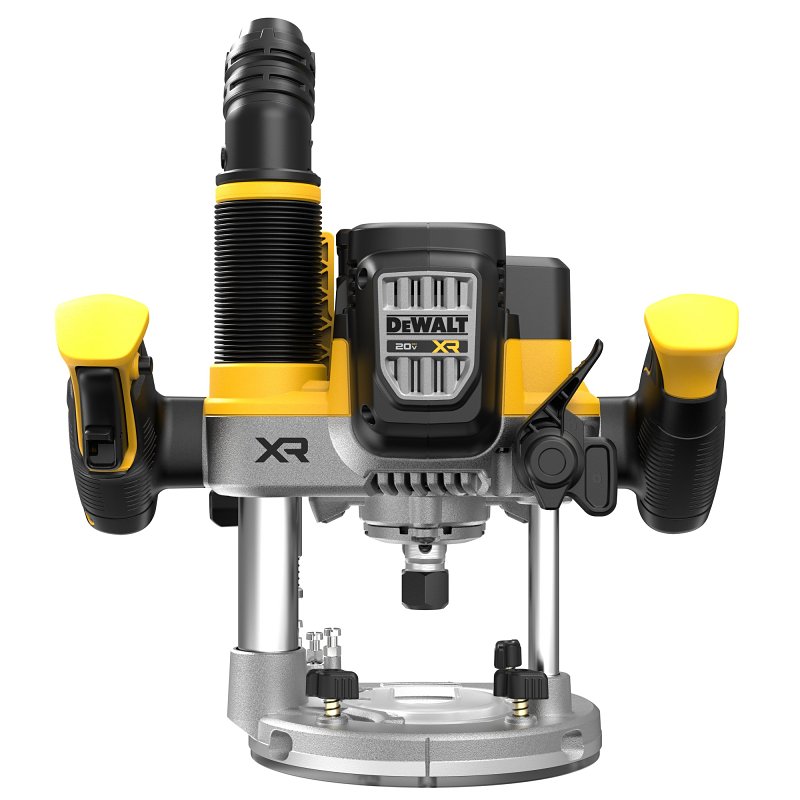

DEWALT MAX XR Series DCW620B Cordless Plunge Router, Tool Only, 20 V, 2-1/2 in Max Cutter Dia, 1/4, 1/2 in Collet

DEWALT

DEWALT MAX XR Series DCW620B Cordless Plunge Router, Tool Only, 20 V, 2-1/2 in Max Cutter Dia, 1/4, 1/2 in Collet

DEWALT MAX XR Series DCW620B Cordless Plunge Router, Tool Only, 20 V, 2-1/2 in Max Cutter Dia, 1/4, 1/2 in Collet
  • Battery Type: Lithium-Ion
  • Collet Size: 1/4 1/2 in
  • Includes: (1) 1/4 in Collet with Nut (1) 1/2 in Collet with Nut (1) Wrench (1) Dust Cap (2) Dust Shield (1) Dust Port with AirLocktrade Compatibility (1) Chip Collector (1) Centering Cone (2) Sub-Base (1) 30 mm Guide Bushing
  • Load Speed: 11000 to 23000 rpm
  • Maximum Cutter Diameter: 2-1/2 in
  • Model #: DCW620B
  • UPC #: 885911912617
  • SKU: 5597554

Your shopping list will be used for pickup in-store

Product Details

The world's first 20V MAX cordless 2-1/4 peak HP dedicated plunge router delivers consistent cutting performance without the hassles of a cord. From meticulous edgework to aggressive plunge cuts, the 20V MAX XR® 2-1/4 peak HP plunge router (battery and charger sold separately) features a 2-1/4 peak horsepower brushless motor that seamlessly handles bits up to 2-1/2 in diameter. The variable speed dial helps maximize user control while maintaining constant speed under load. This router can complete up to 256 linear ft routing 5/8 in round overs in pine on a single charge and helps to maintain a clean workspace with integrated dust collection with AirLock™ compatibility. Designed for tough jobsites, the PERFORM & PROTECT™ anti-rotation system senses the motion of the tool and shuts it down if the motion is excessive.

Key Features

  • Our most powerful 20V MAX cordless router - take on tough applications without the hassle of a cord
  • Help maximize productivity - complete up to 256 linear ft routing 5/8 in round overs in pine on a single charge (using DCBP520 battery sold separately)
  • Integrated dust collection with AirLock™ compatibility - collects up to 97% of dust cutting grooves in particleboard using DCBP520 battery and DWV015 dust extractor (battery and extractor sold separately)
  • Help maximize control - equipped with the anti-rotation system that senses the rotational motion of the tool and shuts it down if the motion is excessive
  • Versatile performance - quickly match the speed of the router to the application at hand with the variable speed dial with constant speed under load that offers (no-load) 11,000 to 23,000 rpms
  • Adjustable turret stop - make quick depth adjustments with the 3-position adjustable turret stop
  • Tool-free depth adjustment system - quickly and accurately setup with the depth adjustment scale, depth stop, micro-fine depth stop adjuster, and micro-fine height adjuster
  • Tool-free plunge lock lever - seamlessly engage and disengage the lock lever without having to remove hands from handles
  • Dual LED - helps provide additional illumination of the work surface for bit visibility
  • Balanced design - get precise routing performance with a compact design of 11-1/2 in height, weighing only 8 lb

Item Specifications

Battery TypeLithium-Ion
Collet Size1/4 1/2 in
Includes(1) 1/4 in Collet with Nut (1) 1/2 in Collet with Nut (1) Wrench (1) Dust Cap (2) Dust Shield (1) Dust Port with AirLocktrade Compatibility (1) Chip Collector (1) Centering Cone (2) Sub-Base (1) 30 mm Guide Bushing
Load Speed11000 to 23000 rpm
Maximum Cutter Diameter2-1/2 in
Spindle LockYes
Tool Only/Battery IncludedTool Only
Voltage Rating20 V
MORE DETAILS:
  • Application: For dados, grooves, flutes, rabbeting, edge profiling, mortising, inlays, doweling and flush trimming
  • Warranty: 3 Year Limited
