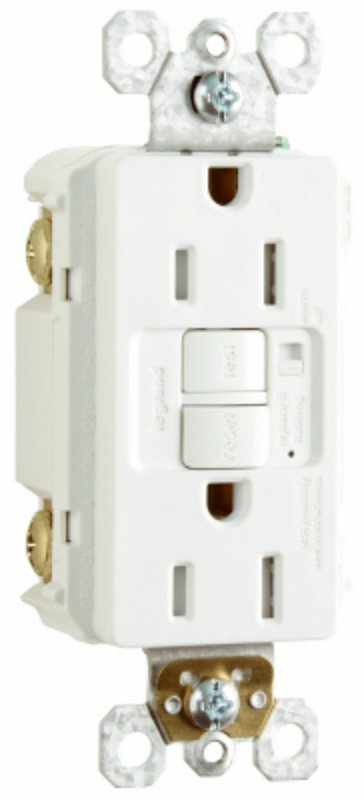

Pass & Seymour radiant Series 1597TRAWCCD4 GFCI Duplex Receptacle, Nylon, White, 2-Pole, 15 A, 125 VAC, NEMA: 5-15R

Legrand

Pass & Seymour radiant Series 1597TRAWCCD4 GFCI Duplex Receptacle, Nylon, White, 2-Pole, 15 A, 125 VAC, NEMA: 5-15R

Pass & Seymour radiant Series 1597TRAWCCD4 GFCI Duplex Receptacle, Nylon, White, 2-Pole, 15 A, 125 VAC, NEMA: 5-15R
  • Color: White
  • Current Rating: 15 A
  • Dimensions: 1.62 in W x 1.13 in D x 4.19 in H
  • Frequency Rating: 60 Hz
  • Material: Nylon
  • Model #: 1597TRAWCCD4
  • UPC #: 785007135565
  • SKU: 0252759

Your shopping list will be used for pickup in-store

Product Details

The radiant collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wallplates that complement today's homes. The self-test GFCI conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock protection feature if critical components are damaged and protection is lost, power to the receptacle is disconnected. Make sure you can spot ground fault trips quickly and resolve them easily with GFCI receptacles installed in the living space.

Key Features

  • Thinner than competitors' GFCI Receptacles leaves more room for wires in the box
  • Side or internal screw pressure plate back wire with 10 to 14 AWG solid or stranded copper wire and two back wire holes per terminal
  • Conducts an automatic test every 3 s, ensuring it's always ready to protect, If the device fails the test, the trip indicator light red LED flashes to signal that the GFCI should be replaced
  • Equipped with proven SafeLock protection feature, if critical components are damaged and protection is lost, power to the receptacle is disconnected
  • Patented shutter system helps prevent improper insertion of foreign objects
  • Mounting screws are shipped captive in the device and wallplate for easier installation
  • Feed-thru wiring configuration allows GFCI to protect downstream receptacles
  • Prevents line-load reversal miswire, no power to the face or downstream receptacles if wired incorrectly
  • Tamper-resistant construction
  • Audible alarm alerts when a trip occurs, alarm rated at 60 dB at 10 ft and can be turned ON/OFF, rated as 15 hp motor control switch

Item Specifications

ColorWhite
Current Rating15 A
Dimensions1.62 in W x 1.13 in D x 4.19 in H
Frequency Rating60 Hz
MaterialNylon
NEMA Configuration5-15R
Number of Poles2
Number Of Wires3
Operating Temperature-35 to 66 deg C
Voltage Rating125 VAC
Wire Size14 to 10 AWG
Wiring TypeBack Side
