Halo H5ICAT Light Housing, 5 in Dia Recessed Can, Aluminum

Halo

Halo H5ICAT Light Housing, 5 in Dia Recessed Can, Aluminum

Halo H5ICAT Light Housing, 5 in Dia Recessed Can, Aluminum
  • Ceiling Opening Size: 5-1/2 in
  • Ceiling Type: Insulated

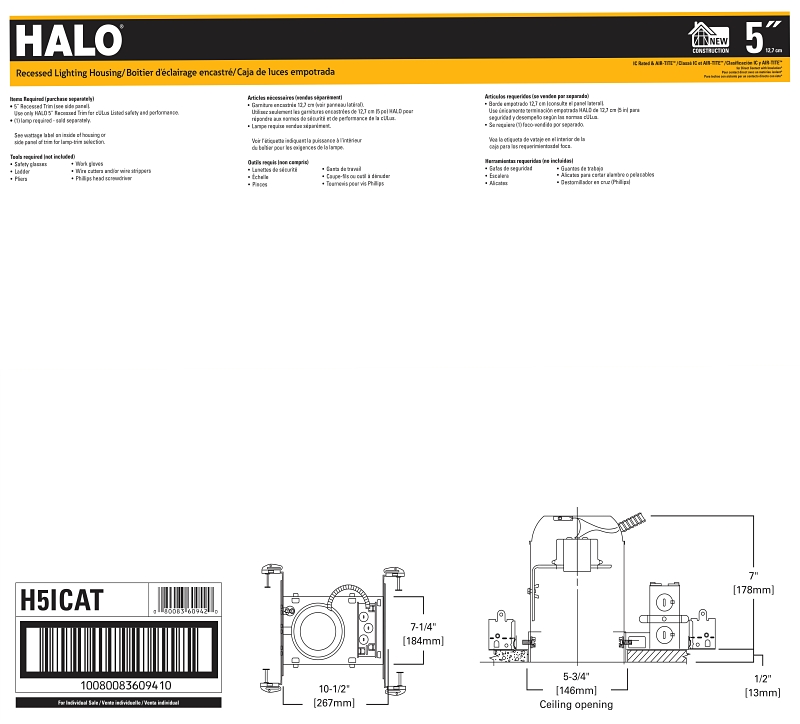

  • Dimensions: 10-1/2 in L x 7-1/4 in W x 7 in H
  • Includes: Ceiling Contact Gasket Cut-Outs Locking Screw Overspray Protector Pre-installed Nail Slide-N-Side Connectors Wiring Nut
  • Material: Aluminum
  • Model #: H5ICAT
  • UPC #: 080083609420
  • SKU: 6513956

Your shopping list will be used for pickup in-store

Product Details

The Halo H5 Series is designed to accommodate smaller sized PAR20 and PAR30 halogen lamps. The wide variety of trims available allows a number of different lighting effects to be created with one basic housing. The H5ICAT is designed for use in insulated ceiling applications. This is an Air-Tite™ housing and may be used to meet restricted air flow requirements.

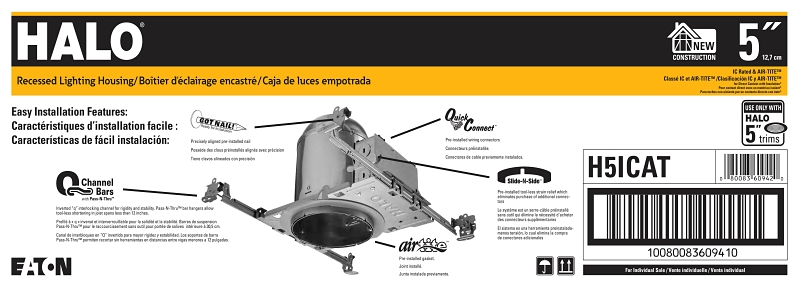

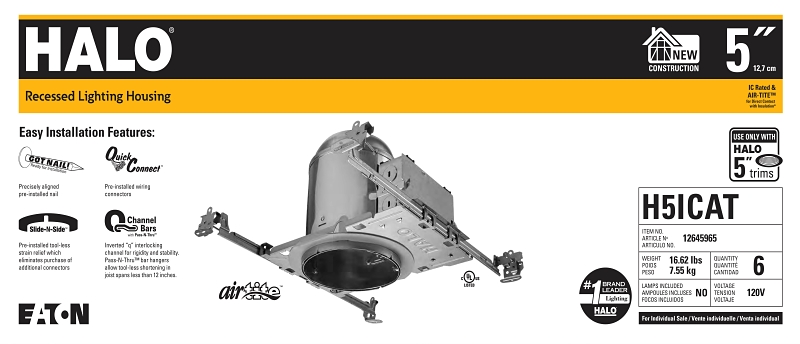

Key Features

  • Quick connect wiring connectors included in junction box
  • Die-formed housing and plaster frame
  • Housing may be removed from plaster frame for junction box access
  • Sealed and gasketed for AIR-TITE™™ ready installation
  • Designed for insulated ceilings in direct contact with insulation
  • Housing adjusts in plaster frame to accommodate up to 1-3/8 in ceiling thickness
  • Rigid socket plate adjusts and locks without tools for various lamp sizes
  • Socket plate and bracket may be removed when using socket supporting trims
  • The housing can be removed from plaster frame to provide access to the junction box
  • Q-channel bars feature an unique inverted q interlocking channel for rigidity and stability

Item Specifications

Ceiling Opening Size5-1/2 in
Ceiling TypeInsulated
Dimensions10-1/2 in L x 7-1/4 in W x 7 in H
IncludesCeiling Contact Gasket Cut-Outs Locking Screw Overspray Protector Pre-installed Nail Slide-N-Side Connectors Wiring Nut
MaterialAluminum
Mounting TypeRecessed
Recessed Can Diameter5 in
MORE DETAILS:
