Leviton

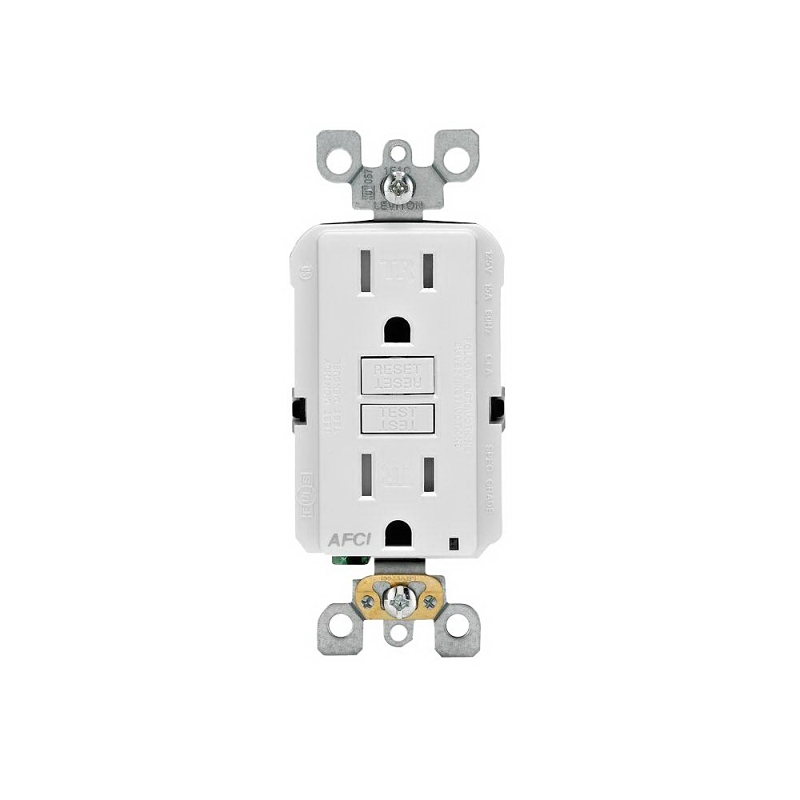

Leviton R12-AFTR1-0KW AFCI Receptacle, 2 -Pole, 15 A, 125 V, Back, Side Wiring, NEMA: 5-15R, White
- Color: White
- Current Rating: 15 A
- Frequency Rating: 60 Hz
- Material: Polycarbonate
- Mounting Type: Wall
- Model #: AFTR1-R32-0KW
- UPC #: 078477629321
- SKU: 4811212
Your shopping list will be used for pickup in-store
Product Details
The SmartlockPro® Outlet Branch Circuit (OBC) AFCI Receptacle offers advanced technology to help protect against electrical fires resulting from arc-faults. Designed to detect a wide range of potentially hazardous arc-faults resulting from damage in branch circuit wiring as well as extensions to branches such as appliances and cord sets, the OBC AFCI responds by interrupting power. This helps reduce the likelihood of the home's electrical system being an ignition source of a fire. Often unseen, arc-faults can occur anywhere in the home's electrical system including within walls, at loose electrical connections or within electrical cords accidently damaged by impinging furniture. AFCIs are now required by the National Electrical Code® in many areas of the home.Key Features
- Automatically tests the AFCI every time the reset button is depressed, the AFCI will not reset if the AFCI circuit is not functioning properly
- By blocking reset of the AFCI if protection has been compromised, the SmartlockPro OBC AFCI reduces the possibility of end-users incorrectly assuming that a reset AFCI is providing protection when its functionality has been compromised
- A line-load reversal diagnostic feature is provided which prevents the AFCI from being reset and stops power from being fed to the AFCI receptacle face or through to downstream devices
- TR symbol indicates the device's compliance with the latest NEC requirements for tamper-resistant receptacles in residences and childcare facilities
- Device design reduces nuisance tripping
- Impact-resistant thermoplastic cover and body
- Great resistance to electrical surges and over-voltages
- Terminals allow for easy wiring options - back and side wire capable
- Compatible with all Decora devices and wallplates
Item Specifications
| Color | White |
|---|---|
| Current Rating | 15 A |
| Frequency Rating | 60 Hz |
| Material | Polycarbonate |
| Mounting Type | Wall |
| NEMA Configuration | 5-15R |
| Number of Poles | 2 |
| Number Of Wires | 3 |
|---|---|
| Operating Temperature | -35 to 66 deg C |
| Voltage Rating | 125 V |
| Wattage Rating | 1 hp |
| Wire Size | 14 to 10 AWG |
| Wiring Type | Back Side |
MORE DETAILS:
- Warranty: 2 Year Limited
